Keyboard KB153

Operation of the keyboard in Ex-zones 1 & 2 possible via the Keyboard-Interface KI153
Various keyboard layouts available
Each keyboard available as a built-in version or with housing
Simple combination of keyboard and pointing device possible

Type code

Keyboard KB153	.x	.x	.x
Variant: Keyboard for installation in housing (IP20) Keyboard with touchpad for installation (IP20) Keyboard with touchpad in housing (IP65) Keyboard with 30 keys for installation (IP20) Keyboard with 30 keys in housing (IP65) Keyboard with trackball in housing (IP65)	.0 .2 .3 .4 .5 .8
Keyboard layout: German English-American Customer-specific		.000 .001 .009
Module type: USB PS/2			.0 .1

Typ KB153	Keyboard variant	required KI153
KB153.0	Keyboard for installation in housing (IP20)	KI153.0.x
KB153.2	Keyboard with touchpad for installation (IP20)	KI153.1.x
KB153.3	Keyboard with touchpad in housing (IP65)	KI153.1.x
KB153.4	Keyboard with 30 keys for installation (IP20)	KI153.0.x
KB153.5	Keyboard with 30 keys in housing (IP65)	KI153.0.x

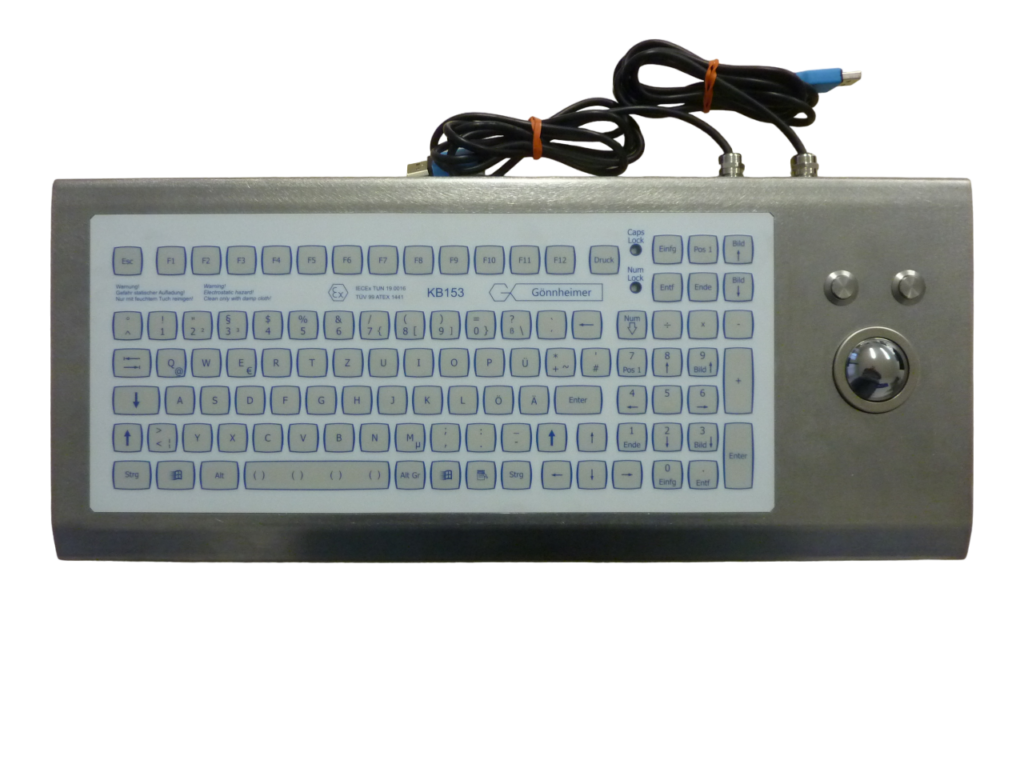

KB153.8	Keyboard with trackball in housing (IP65)	KI153.1.x
